Ball valve GOST with a butterfly handle and internal thread

(VT.417.N) Ball valves of the VALTEC GOST series are manufactured in accordance with GOST R 59553-2021 «Pipeline fittings. Ball valves. General technical specifications» and are intended for use in cold and hot water supply systems, including domestic drinking water, water and steam heating as well as on process pipelines transporting liquids and gases (group 2 according to TR CU 032/2013), non-aggressive to product materials.

The valves are designed for use in the systems with the operating environment temperature from –20 to +150 °C. Nominal pressure: 40 bar (taken as the operating pressure at the operating temperature not exceeding 30 °C). Service life of the valves: 30 years, average resource: 25 thousand cycles.

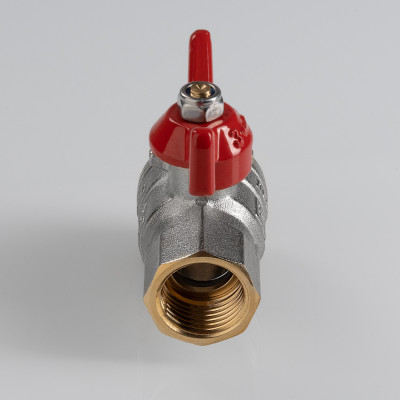

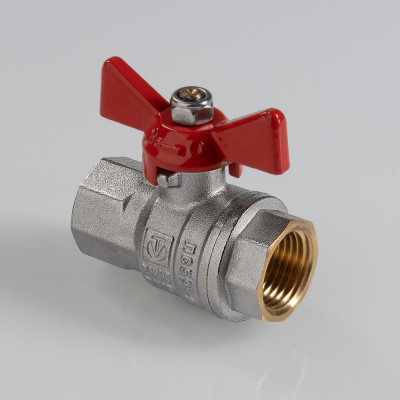

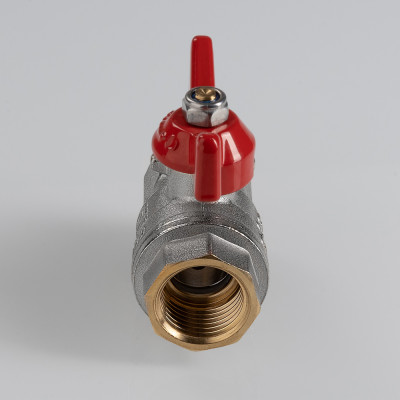

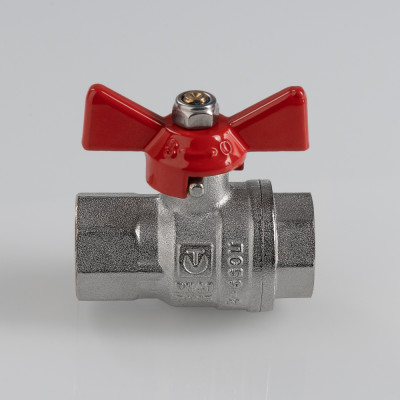

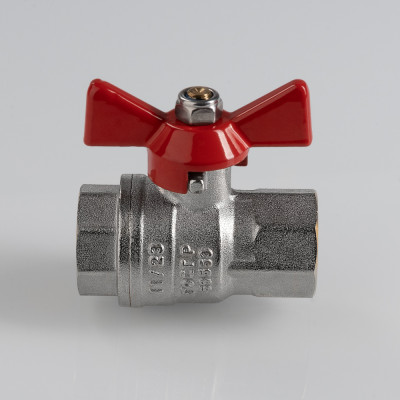

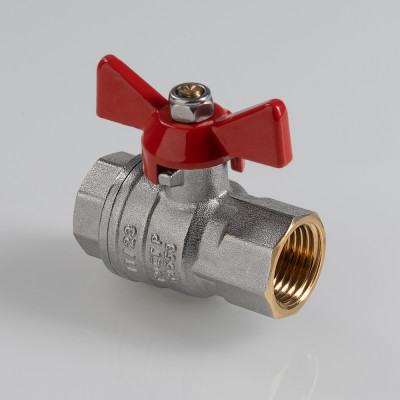

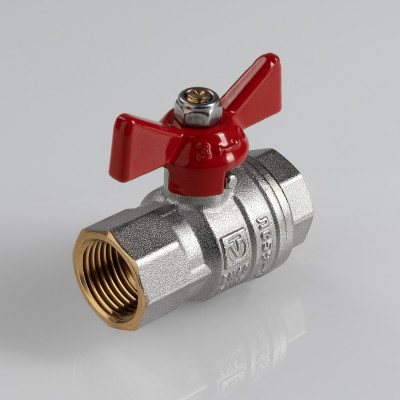

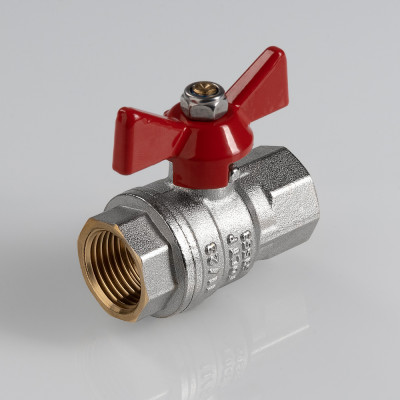

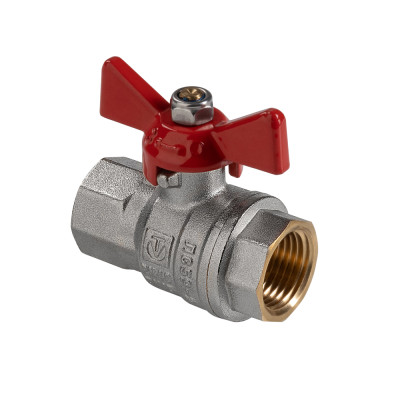

VT.417.N full-bore ball valve of the VALTEC GOST series has an internal thread and is equipped with a silumin butterfly handle with epoxy enamel painting.

Ball valves VALTEC GOST should not experience mechanical loads from pipelines (bending, compression, stretching, torsion, distortions, vibration, wear of pipes, uneven tightening of fasteners). If necessary, supports or compensators should be provided.

The threads of pipelines and other parts connected to the tap must comply with GOST 6357-81.

Country of manufacture: China.
