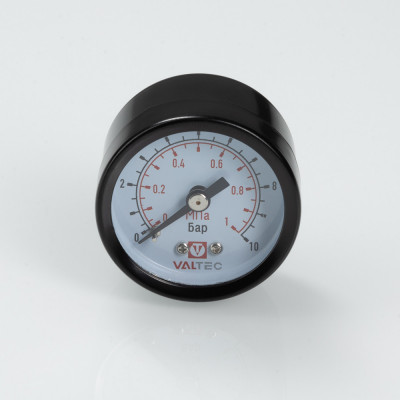

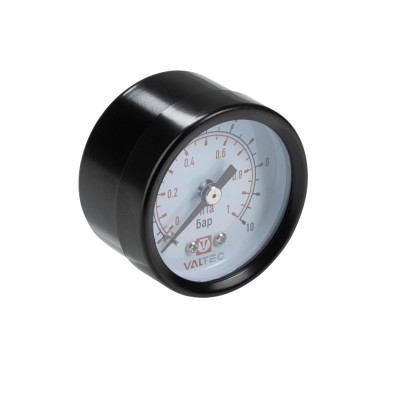

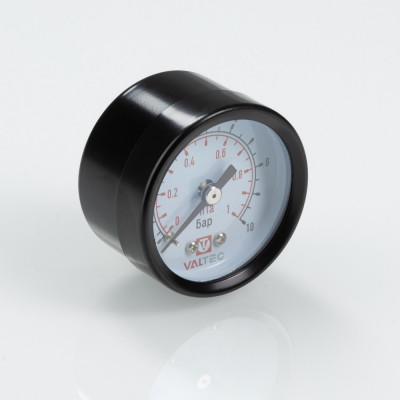

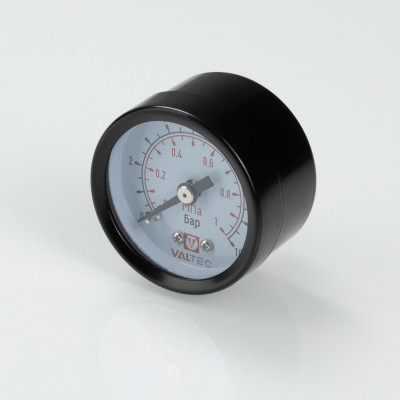

VT.TM40.T indicator pressure gauge with axial connection

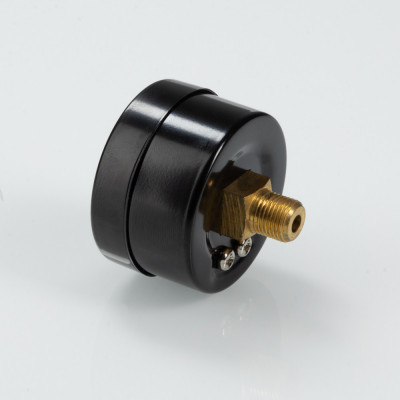

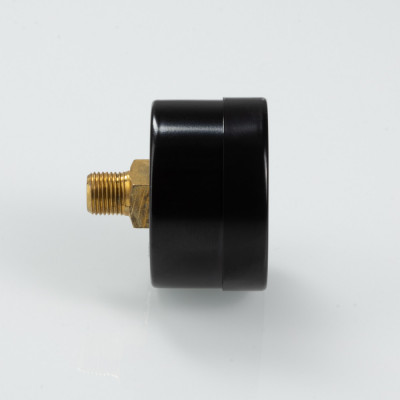

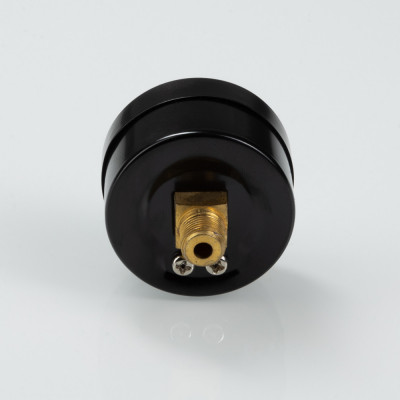

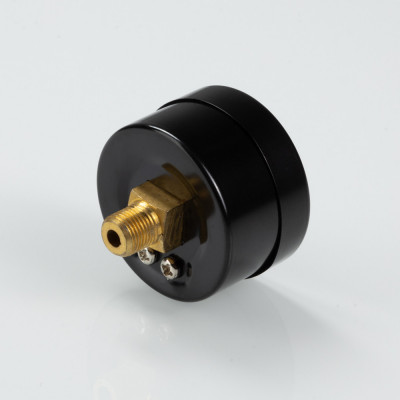

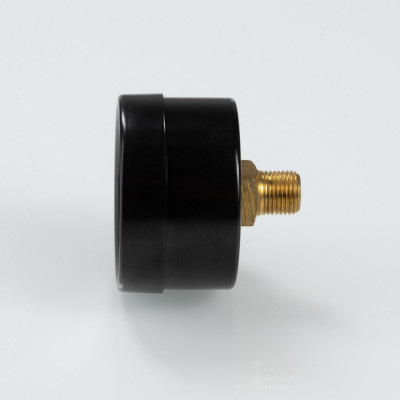

(VT.TM40.T) VT.TM40.T pressure gauges are used to indicate the overpressure of liquid and gaseous media, non-viscous, non-crystallizing and non-aggressive to copper alloys, with the temperatures up to 120 °C. The pressure gauge has an axial connection with a 1/8" diameter thread.

Enclosure diameter: 40 mm.
Pressure scale range: 0–4 bar (VT.TM40.T.01), 0–6 bar (VT.TM40.TC.01), 0–10 bar (VT.TM40.TF.01).
The permissible ambient temperature range: 20...+60 °C.
Enclosure protection class: IP40.
Sensing element material: copper.
Pinion-sector mechanism material: brass.
