Stainless steel manifold kit with control valves and flow meters

(VTc.584.EMNX) VTc.584 stainless steel manifold kits are used to distribute the flow of the transported medium along floor heating system contours.

VTc.584 stainless steel manifold kit with control valves and flow meters is designed for use in water heating systems with the maximum operating temperature 70 °C and pressure up to 6 bars inclusive.

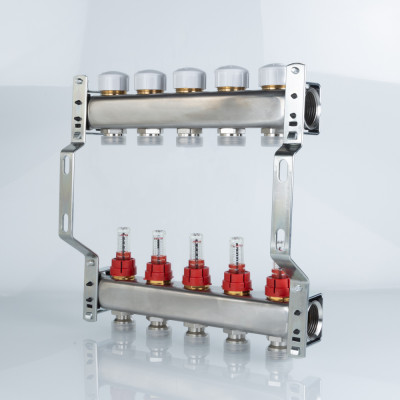

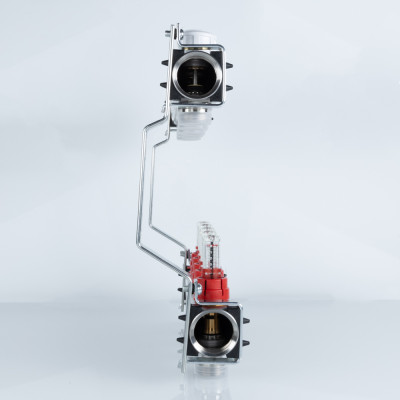

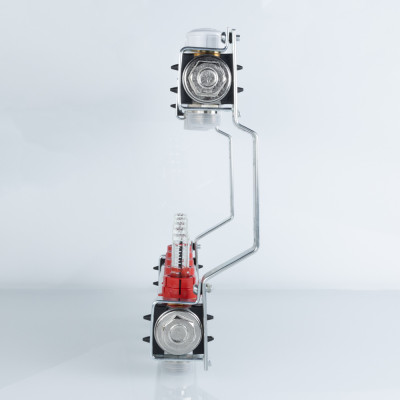

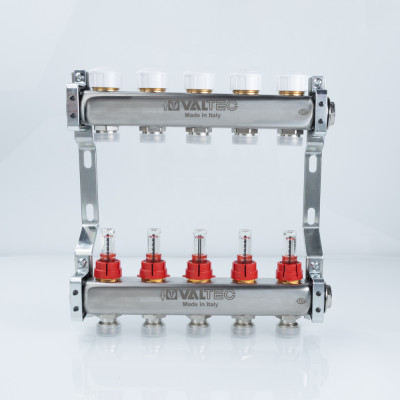

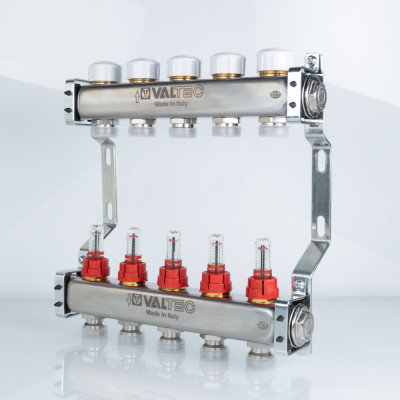

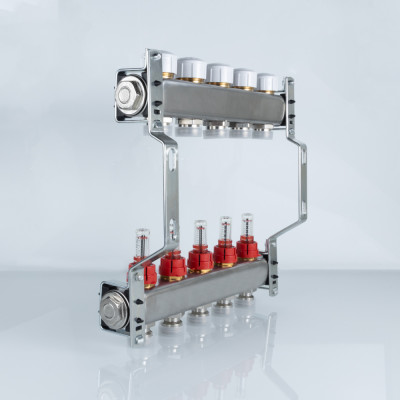

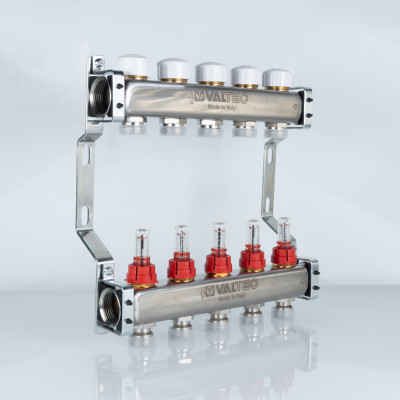

The manifold kit combines supply and return manifolds made of AISI 304 stainless steel, manual adjusting valves with flow meters (rotameters), control valves (with the possibility of installation of electrothermal servo drive), manifold plugs and galvanized steel mounting brackets. The kit does not include service group elements.

These manifold kits can be used in systems where water or non-freezing glycol mixtures are used as heat medium.

Number of outputs: from three to ten. Pipe loops are connected using “eurocone” fittings.

Dimensione/quantitativoPrezzo unitario
VTc.584.EMNX.06031", 3 x 3/4", "евроконус"11120
VTc.584.EMNX.06041", 4 x 3/4", "евроконус"13875
VTc.584.EMNX.06051", 5 x 3/4", "евроконус"16674
VTc.584.EMNX.06061", 6 x 3/4", "евроконус"19071
VTc.584.EMNX.06071", 7 x 3/4", "евроконус"22301
VTc.584.EMNX.06081", 8 x 3/4", "евроконус"25935
VTc.584.EMNX.06091", 9 x 3/4", "евроконус"28799
VTc.584.EMNX.06101", 10 x 3/4", "евроконус"31425
* Vengono indicati i prezzi al dettaglio raccomandati dal produttore (in rubli).
